Working Principle

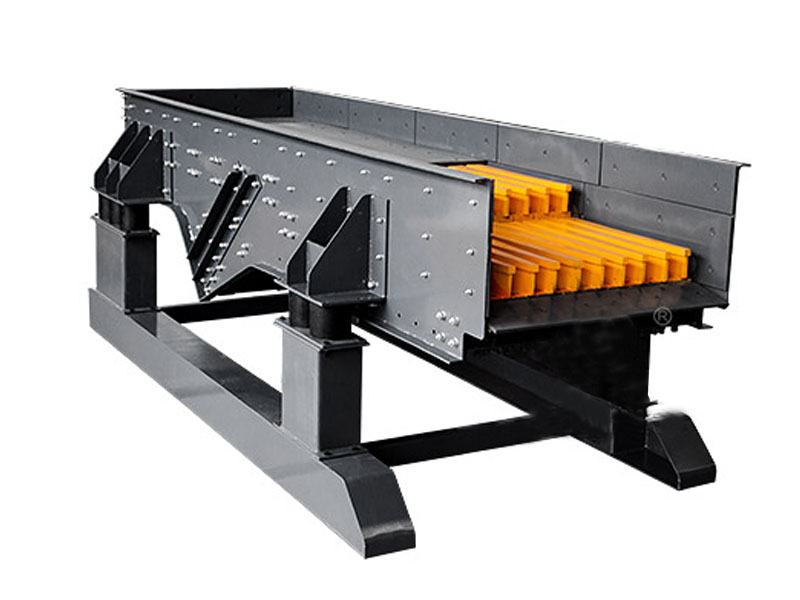

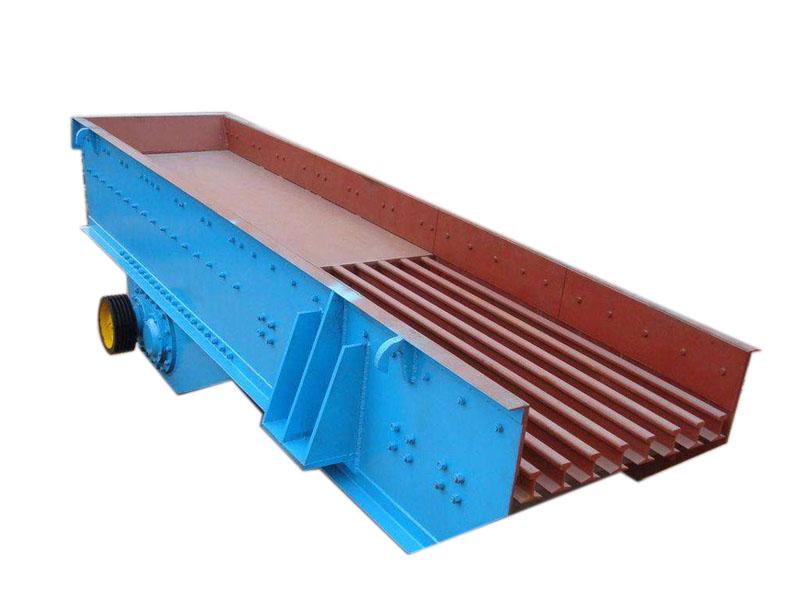

The vibrating feeder uses the eccentric block rotation in the vibrator to generate centrifugal force, so that the movable parts such as screen chamber and vibrator can make forced continuous circle or approximate circle movement. Vibrating feeder is composed of feeding tank, exciter, spring support, transmission device, etc. The vibration source of the tank vibration feeding is the exciter, which is composed of two eccentric shafts (active and passive) and gear pairs. The motor drives the active shaft through the triangle belt, and then the gears on the active shaft engage with the passive shaft to rotate. The active and passive shafts rotate in reverse at the same time, making the tank vibrate, making the materials flow continuously, so as to achieve the purpose of conveying materials.
